cc2DLabel Class Reference

2D label (typically attached to points) More...

#include <cc2DLabel.h>

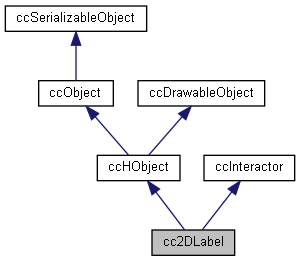

Inheritance diagram for cc2DLabel:
Inheritance graph
[legend]

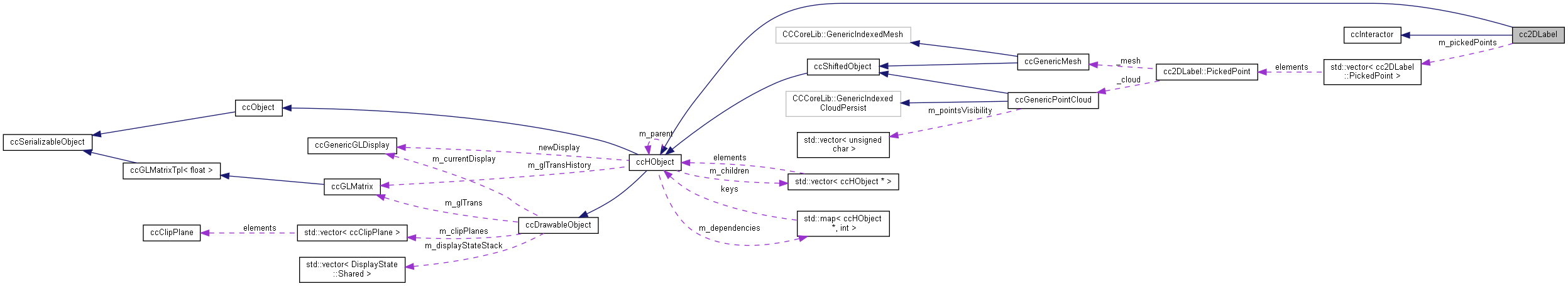

Collaboration diagram for cc2DLabel:
Collaboration graph
[legend]

Classes

struct  PickedPoint
 Picked point descriptor. More...


Public Member Functions

 cc2DLabel (QString name=QString("label"))
 Default constructor.

virtual QString getName () const
 Returns object name.

virtual CC_CLASS_ENUM getClassID () const
 Returns class ID. More...

virtual bool isSerializable () const
 Returns whether object is serializable of not.

QString getRawName () const
 Returns 'raw' name (no replacement of default keywords)

bool addPoint (ccGenericPointCloud *cloud, unsigned pointIndex)
 Adds a point to label. More...

QStringList getLabelContent (int precision)
 Gets label content (as it will be displayed) More...

virtual bool acceptClick (int x, int y, Qt::MouseButton button)
 Called on mouse click.

virtual bool move2D (int x, int y, int dx, int dy, int screenWidth, int screenHeight)
 Called on mouse move (for 2D interactors) More...

void setPosition (float x, float y)
 Sets relative position.

const float * getPosition () const
 Returns relative position.

void clear (bool ignoreDependencies=false)
 Clears label.

unsigned size () const
 Returns current size.

void setCollapsed (bool state)
 Whether to collapse label or not.

bool isCollapsed () const
 Returns Whether the label is collapsed or not.

void setDisplayedIn3D (bool state)
 Whether to display the label in 3D (title only)

bool isDisplayedIn3D () const
 Returns whether the label is displayed in 3D (title only)

void setDisplayedIn2D (bool state)
 Whether to display the label in 2D.

bool isDisplayedIn2D () const
 Returns whether the label is displayed in 2D.

const PickedPointgetPoint (unsigned index) const
 Returns a given point.

- Public Member Functions inherited from ccHObject
 ccHObject (QString name=QString())
 Default constructor. More...

virtual ~ccHObject ()
 Default destructor.

virtual QIcon getIcon () const
 Returns the icon associated to this entity. More...

ccHObjectgetParent () const
 Returns parent object. More...

void addDependency (ccHObject *otherObject, int flags, bool additive=true)
 Adds a new dependence (additive or not) More...

int getDependencyFlagsWith (const ccHObject *otherObject)
 Returns the dependency flags with a given object. More...

void removeDependencyWith (const ccHObject *otherObject)
 Removes any dependency flags with a given object. More...

void removeDependencyFlag (ccHObject *otherObject, DEPENDENCY_FLAGS flag)
 Removes a given dependency flag. More...

virtual bool addChild (ccHObject *child, int dependencyFlags=DP_PARENT_OF_OTHER, int insertIndex=-1)
 Adds a child. More...

unsigned getChildrenNumber () const
 Returns the number of children. More...

ccHObjectgetChild (unsigned childPos) const
 Returns the ith child. More...

ccHObjectfind (int uniqueID)
 Finds an entity in this object hierarchy. More...

unsigned filterChildren (Container &filteredChildren, bool recursive=false, CC_CLASS_ENUM filter=CC_TYPES::OBJECT) const
 Collects the children corresponding to a certain pattern. More...

void detachChild (ccHObject *child)
 Detaches a specific child. More...

void detatchAllChildren ()
 Removes a specific child. More...

void removeChild (ccHObject *child)

void removeChild (int pos)
 Removes a specific child given its index. More...

void removeAllChildren ()
 Removes all children.

int getChildIndex (const ccHObject *aChild) const
 Returns child index.

void swapChildren (unsigned firstChildIndex, unsigned secondChildIndex)
 Swaps two children.

int getIndex () const
 Returns index relatively to its parent or -1 if no parent.

void transferChild (ccHObject *child, ccHObject &newParent)
 Transfer a given child to another parent.

void transferChildren (ccHObject &newParent, bool forceFatherDependent=false)
 Transfer all children to another parent.

ccHObjectgetFirstChild () const
 Shortcut: returns first child.

ccHObjectgetLastChild () const
 Shortcut: returns last child.

bool isAncestorOf (const ccHObject *anObject) const
 Returns true if the current object is an ancestor of the specified one.

virtual ccBBox getBB (bool relative=true, bool withGLfeatures=false, const ccGenericGLDisplay *window=NULL)
 Returns bounding-box. More...

virtual void draw (CC_DRAW_CONTEXT &context)
 Draws entity and its children.

virtual bool isDisplayed () const
 Returns whether the object is actually displayed (visible) or not.

virtual bool isBranchEnabled () const
 Returns whether the object and all its ancestors are enabled.

 ccHObject_recursive_call1 (setSelected, bool, setSelected_recursive)

 ccHObject_recursive_call1 (setDisplay, ccGenericGLDisplay *, setDisplay_recursive)

 ccHObject_recursive_call1 (removeFromDisplay, ccGenericGLDisplay *, removeFromDisplay_recursive)

 ccHObject_recursive_call0 (prepareDisplayForRefresh, prepareDisplayForRefresh_recursive)

 ccHObject_recursive_call0 (refreshDisplay, refreshDisplay_recursive)

 ccHObject_recursive_call0 (toggleVisibility, toggleVisibility_recursive)

 ccHObject_recursive_call0 (toggleColors, toggleColors_recursive)

 ccHObject_recursive_call0 (toggleNormals, toggleNormals_recursive)

 ccHObject_recursive_call0 (toggleSF, toggleSF_recursive)

 ccHObject_recursive_call0 (toggleShowName, toggleShowName_recursive)

 ccHObject_recursive_call0 (toggleMaterials, toggleMaterials_recursive)

void applyGLTransformation_recursive (ccGLMatrix *trans=0)
 Applies the active OpenGL transformation to the entity (recursive) More...

virtual CCVector3 getBBCenter ()
 Returns the bounding-box center. More...

void notifyGeometryUpdate ()
 Notifies all dependent entities that the geometry of this entity has changed.

virtual ccBBox getMyOwnBB ()
 Returns the entity bounding-box only. More...

virtual ccBBox getDisplayBB ()
 Returns the entity GL display bounding-box. More...

virtual bool toFile (QFile &out) const
 Saves data to binay stream. More...

virtual bool fromFile (QFile &in, short dataVersion, int flags)
 Reimplemented from ccSerializableObject::fromFile. More...

virtual bool isShareable () const
 Returns whether object is shareable or not. More...

void setSelectionBehavior (SelectionBehavior mode)
 Sets selection behavior (when displayed) More...

SelectionBehavior getSelectionBehavior () const
 Returns selection behavior.

virtual unsigned getUniqueIDForDisplay () const
 Returns object unqiue ID used for display.

- Public Member Functions inherited from ccObject
 ccObject (QString name=QString())
 Default constructor. More...

virtual void setName (const QString &name)
 Sets object name.

virtual unsigned getUniqueID () const
 Returns object unique ID.

virtual void setUniqueID (unsigned ID)
 Changes unique ID. More...

virtual bool isEnabled () const
 Returns whether the object is enabled or not. More...

virtual void setEnabled (bool state)
 Sets the "enabled" property. More...

virtual bool isLocked () const
 Returns whether the object is locked or not. More...

virtual void setLocked (bool state)
 Sets the "enabled" property. More...

bool isGroup () const

bool isLeaf () const

bool isCustom () const

bool isHierarchy () const

bool isKindOf (CC_CLASS_ENUM type) const

bool isA (CC_CLASS_ENUM type) const

QVariant getMetaData (QString key) const
 Returns a given associated meta data. More...

bool removeMetaData (QString key)
 Removes a given associated meta data. More...

void setMetaData (QString key, QVariant data)
 Sets a meta data element. More...

bool hasMetaData (QString key)
 Says if a metadata with the given key exists or not. More...

const QVariantMap & metaData () const
 Returns meta-data map (const only)

- Public Member Functions inherited from ccSerializableObject
virtual ~ccSerializableObject ()
 Desctructor.

- Public Member Functions inherited from ccDrawableObject
 ccDrawableObject ()
 Default constructor.

virtual bool isVisible () const
 Returns whether entity is visible or not.

virtual void setVisible (bool state)
 Sets entity visibility.

virtual void toggleVisibility ()
 Toggles visibility.

virtual bool isVisiblityLocked () const
 Returns whether visibilty is locked or not.

virtual void lockVisibility (bool state)
 Locks/unlocks visibilty. More...

virtual bool isSelected () const
 Returns whether entity is selected or not.

virtual void setSelected (bool state)
 Selects/unselects entity.

virtual ccBBox getFitBB (ccGLMatrix &trans)
 Returns best-fit bounding-box (if available) More...

virtual void drawBB (const colorType col[])
 Draws absolute (axis aligned) bounding-box.

virtual void getDrawingParameters (glDrawParams &params) const
 Returns main OpenGL paramters for this entity. More...

virtual bool hasColors () const
 Returns whether colors are enabled or not.

virtual bool colorsShown () const
 Returns whether colors are shown or not.

virtual void showColors (bool state)
 Sets colors visibility.

virtual void toggleColors ()
 Toggles colors display state.

virtual bool hasNormals () const
 Returns whether normals are enabled or not.

virtual bool normalsShown () const
 Returns whether normals are shown or not.

virtual void showNormals (bool state)
 Sets normals visibility.

virtual void toggleNormals ()
 Toggles normals display state.

virtual bool hasDisplayedScalarField () const
 Returns whether an active scalar field is available or not.

virtual bool hasScalarFields () const
 Returns whether one or more scalar fields are instantiated. More...

virtual void showSF (bool state)
 Sets active scalarfield visibility.

virtual void toggleSF ()
 Toggles SF display state.

virtual bool sfShown () const
 Returns whether active scalar field is visible.

virtual void toggleMaterials ()
 Toggles material display state.

virtual void showNameIn3D (bool state)
 Sets whether name should be displayed in 3D.

virtual bool nameShownIn3D () const
 Returns whether name is displayed in 3D or not.

virtual void toggleShowName ()
 Toggles name in 3D display state.

virtual bool isColorOverriden () const
 Returns whether colors are currently overriden by a temporary (unique) color. More...

virtual const colorType * getTempColor () const
 Returns current temporary (unique) color.

virtual void setTempColor (const colorType *col, bool autoActivate=true)
 Sets current temporary (unique) More...

virtual void enableTempColor (bool state)
 Set temporary color activation state.

virtual void removeFromDisplay (const ccGenericGLDisplay *win)
 Unlinks entity from a GL display (only if it belongs to it of course)

virtual void setDisplay (ccGenericGLDisplay *win)
 Sets associated GL display.

virtual ccGenericGLDisplaygetDisplay () const
 Returns associated GL display.

virtual void redrawDisplay ()
 Redraws associated GL display.

virtual void prepareDisplayForRefresh ()
 Sets associated GL display 'refreshable' before global refresh. More...

virtual void refreshDisplay ()
 Refreshes associated GL display. More...

virtual void setGLTransformation (const ccGLMatrix &trans)
 Associates entity with a GL transformation (rotation + translation) More...

virtual void enableGLTransformation (bool state)
 Enables/disables associated GL transformation. More...

virtual bool isGLTransEnabled () const
 Returns whether a GL transformation is enabled or not.

virtual const ccGLMatrixgetGLTransformation () const
 Retuns associated GL transformation. More...

virtual void resetGLTransformation ()
 Resets associated GL transformation. More...

virtual void rotateGL (const ccGLMatrix &rotMat)
 Mutliplies (left) current GL transformation by a rotation matrix. More...

virtual void translateGL (const CCVector3 &trans)
 Translates current GL transformation by a rotation matrix. More...

- Public Member Functions inherited from ccInteractor
virtual bool move3D (const CCVector3 &u)
 Called on mouse move (for 3D interactors) More...


Protected Member Functions

virtual bool toFile_MeOnly (QFile &out) const
 Save own object data. More...

virtual bool fromFile_MeOnly (QFile &in, short dataVersion, int flags)
 Loads own object data. More...

virtual void drawMeOnly (CC_DRAW_CONTEXT &context)
 Draws the entity only (not its children)

virtual void onDeletionOf (const ccHObject *obj)
 This method is called when another object is deleted. More...

virtual void drawMeOnly2D (CC_DRAW_CONTEXT &context)
 Draws the entity only (not its children) - 2D version.

virtual void drawMeOnly3D (CC_DRAW_CONTEXT &context)
 Draws the entity only (not its children) - 3D version.

void updateName ()
 Updates the label 'name'.

- Protected Member Functions inherited from ccHObject
virtual void setParent (ccHObject *anObject)
 Sets parent object.

virtual void applyGLTransformation (const ccGLMatrix &trans)
 Applies a GL transformation to the entity. More...

virtual void drawNameIn3D (CC_DRAW_CONTEXT &context)
 Draws the entity name in 3D. More...

virtual void onUpdateOf (ccHObject *obj)
 This method is called when another object (geometry) is updated. More...

- Protected Member Functions inherited from ccObject
virtual bool getFlagState (CC_OBJECT_FLAG flag) const
 Returns flag state.

virtual void setFlagState (CC_OBJECT_FLAG flag, bool state)
 Sets flag state. More...


Protected Attributes

std::vector< PickedPointm_points
 Picked points.

bool m_showFullBody
 Whether to show full label body or not.

int m_labelROI [4]
 label ROI More...

float m_screenPos [2]
 close button ROI More...

int m_lastScreenPos [2]
 Label position at last display (absolute)

bool m_dispIn3D
 Whether to display the label in 3D (title only)

bool m_dispIn2D
 Whether to display the label in 2D.

- Protected Attributes inherited from ccHObject
ccHObjectm_parent
 Object's parent.

Container m_children
 Object's children.

SelectionBehavior m_selectionBehavior
 Selection behavior.

std::map< ccHObject *, int > m_dependencies
 Dependencies map. More...

- Protected Attributes inherited from ccObject
QString m_name
 Object name.

unsigned m_flags
 Object flags.

QVariantMap m_metaData
 Associated meta-data.

- Protected Attributes inherited from ccDrawableObject
bool m_visible
 Specifies whether the object is visible or not. More...

bool m_selected
 Specifies whether the object is selected or not.

bool m_lockedVisibility
 Specifies whether the visibility can be changed by user or not.

bool m_colorsDisplayed
 Specifies whether colors should be displayed.

bool m_normalsDisplayed
 Specifies whether normals should be displayed.

bool m_sfDisplayed
 Specifies whether scalar field should be displayed.

colorType m_tempColor [3]
 Temporary (unique) color.

bool m_colorIsOverriden
 Temporary (unique) color activation state.

ccGLMatrix m_glTrans
 Current GL transformation. More...

bool m_glTransEnabled
 Current GL transformation activation state. More...

bool m_showNameIn3D
 Whether name is displayed in 3D or not.

ccGenericGLDisplaym_currentDisplay
 Currently associated GL display.


Additional Inherited Members

- Public Types inherited from ccHObject
enum  DEPENDENCY_FLAGS {
  DP_NONE = 0, DP_NOTIFY_OTHER_ON_DELETE = 1, DP_NOTIFY_OTHER_ON_UPDATE = 2, DP_DELETE_OTHER = 8,
  DP_PARENT_OF_OTHER = 24
}
 Dependency flags. More...

enum  SelectionBehavior { SELECTION_AA_BBOX, SELECTION_FIT_BBOX, SELECTION_IGNORED }
 Behavior when selected.

typedef std::vector< ccHObject * > Container
 standard ccHObject container (for children, etc.)

- Public Types inherited from ccSerializableObject
enum  DeserializationFlags { DF_POINT_COORDS_64_BITS = 1, DF_SCALAR_VAL_32_BITS = 2 }
 Deserialization flags (bit-field) More...

- Static Public Member Functions inherited from ccHObject
static ccHObjectNew (CC_CLASS_ENUM objectType, const char *name=0)
 Static factory. More...

- Static Public Member Functions inherited from ccObject
static unsigned GetCurrentDBVersion ()
 Returns current database version.

static void ResetUniqueIDCounter ()
 Resets the object's unique ID counter. More...

static unsigned GetNextUniqueID ()
 Returns a new unassigned unique ID. More...

static unsigned GetLastUniqueID ()
 Returns last assigned unique ID. More...

static CC_CLASS_ENUM ReadClassIDFromFile (QFile &in, short dataVersion)
 Helper: reads out class ID from a binary stream. More...

- Static Public Member Functions inherited from ccSerializableObject
static bool WriteError ()
 Sends a custom error message (write error) and returns 'false'. More...

static bool ReadError ()
 Sends a custom error message (read error) and returns 'false'. More...

static bool MemoryError ()
 Sends a custom error message (not enough memory) and returns 'false'. More...

static bool CorruptError ()
 Sends a custom error message (corrupted file) and returns 'false'. More...

- Static Protected Member Functions inherited from ccObject
static void UpdateLastUniqueID (unsigned lastID)
 Sets last assigned unique ID. More...


Detailed Description

2D label (typically attached to points)

Member Function Documentation

bool cc2DLabel::addPoint ( ccGenericPointCloud cloud,
unsigned  pointIndex
)

Adds a point to label.

Adding a point to a label will automatcillay make it 'mute'. 1 point = 'point' label (point position, normal, color, etc.) 2 points = 'vector' label (vertices position, distance) 3 points = "triangle/plane' label (vertices position, area, normal)

Returns
false if 'full'
bool cc2DLabel::fromFile_MeOnly ( QFile &  in,
short  dataVersion,
int  flags
)
protectedvirtual

Loads own object data.

Called by 'fromFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Parameters
ininput file
dataVersionfile version
flagsdeserialization flags (see ccSerializableObject::DeserializationFlags)

Reimplemented from ccHObject.

virtual CC_CLASS_ENUM cc2DLabel::getClassID ( ) const
inlinevirtual

Returns class ID.

Returns
class unique ID

Reimplemented from ccHObject.

QStringList cc2DLabel::getLabelContent ( int  precision)

Gets label content (as it will be displayed)

Parameters
precisiondisplayed numbers precision
Returns
label body (one string per line)
bool cc2DLabel::move2D ( int  x,
int  y,
int  dx,
int  dy,
int  screenWidth,
int  screenHeight
)
virtual

Called on mouse move (for 2D interactors)

Returns
true if a movement occurs

Reimplemented from ccInteractor.

void cc2DLabel::onDeletionOf ( const ccHObject obj)
protectedvirtual

This method is called when another object is deleted.

For internal use.

Reimplemented from ccHObject.

bool cc2DLabel::toFile_MeOnly ( QFile &  out) const
protectedvirtual

Save own object data.

Called by 'toFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Reimplemented from ccHObject.

Member Data Documentation

int cc2DLabel::m_labelROI[4]
protected

label ROI

ROI is displayed relatively to m_screenPos (projected in displayed screen space). m_screenPos corresponds to its top-left corner. So ROI[1] is the distance to the upper border and ROI[3] is the distance to the lower border (relatively to m_screenPos).

float cc2DLabel::m_screenPos[2]
protected

close button ROI

Label position (percentage of screen size)


The documentation for this class was generated from the following files:
