Color scale. More...

#include <ccColorScale.h>

Inheritance diagram for ccColorScale:

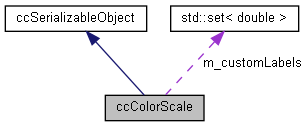

Collaboration diagram for ccColorScale:

Public Types
using	Shared = QSharedPointer< ccColorScale >
	Shared pointer type.

using	LabelSet = std::set< double >
	Type of a list of custom labels.

Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID)

Public Member Functions
	ccColorScale (const QString &name, const QString &uuid=QString())
	Default constructor. More...

	~ccColorScale () override=default
	Destructor.

ccColorScale::Shared	copy (const QString &uuid=QString()) const
	Creates a copy of this color scale (with a specified unique id)

const QString &	getName () const
	Returns name.

void	setName (const QString &name)
	Sets name.

const QString &	getUuid () const
	Returns unique ID.

void	setUuid (const QString &uuid)
	Sets unique ID.

void	generateNewUuid ()
	Generates a new unique ID.

bool	isRelative () const
	Returns whether scale is relative or absoute. More...

void	setRelative ()
	Sets scale as relative.

void	setAbsolute (double minVal, double maxVal)
	Sets scale as absolute.

void	getAbsoluteBoundaries (double &minVal, double &maxVal) const
	Get absolute scale boundaries. More...

bool	isLocked () const
	Returns whether scale is locked or not.

void	setLocked (bool state)
	Sets whether scale is locked or not.

LabelSet &	customLabels ()
	Returns the list of custom labels (if any)

const LabelSet &	customLabels () const
	Returns the list of custom labels (if any - const version)

void	setCustomLabels (const LabelSet &labels)
	Sets the list of custom labels (only if the scale is absolute) More...

int	stepCount () const
	Returns the current number of steps. More...

ccColorScaleElement &	step (int index)
	Access to a given step.

const ccColorScaleElement &	step (int index) const
	Access to a given step (const)

void	insert (const ccColorScaleElement &step, bool autoUpdate=true)
	Adds a step. More...

void	remove (int index, bool autoUpdate=true)
	Deletes a given step. More...

void	clear ()
	Clears all steps. More...

void	update ()
	Updates internal representation. More...

double	getRelativePosition (double value) const
	Returns relative position of a given value (wrt to scale absolute min and max) More...

const ccColor::Rgb *	getColorByValue (double value, const ccColor::Rgb *outOfRangeColor=nullptr) const
	Returns color by value. More...

const ccColor::Rgb *	getColorByRelativePos (double relativePos, const ccColor::Rgb *outOfRangeColor=nullptr) const
	Returns color by relative position in scale. More...

const ccColor::Rgb *	getColorByRelativePos (double relativePos, unsigned steps, const ccColor::Rgb *outOfRangeColor=nullptr) const
	Returns color by relative position in scale with a given 'resolution'. More...

const ccColor::Rgb &	getColorByIndex (unsigned index) const
	Returns color by index. More...

bool	saveAsXML (const QString &filename) const
	Saves this color scale as an XML file.

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor.

virtual bool	isSerializable () const
	Returns whether object is serializable of not. More...

virtual bool	toFile (QFile &out) const
	Saves data to binary stream. More...

virtual bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads data from binary stream. More...

Static Public Member Functions
static ccColorScale::Shared	Create (const QString &name)
	Creates a new color scale (with auto-generated unique id) More...

static Shared	LoadFromXML (const QString &filename)
	Loads a color scale from an XML file.

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Static Public Attributes
static constexpr unsigned	MIN_STEPS = 2
	Minimum number of steps.

static constexpr unsigned	DEFAULT_STEPS = 256
	Default number of steps for display.

static constexpr unsigned	MAX_STEPS = 1024
	Maximum number of steps (internal representation)

Protected Member Functions
void	sort ()
	Sort elements.

Protected Attributes
QString	m_name
	Name.

QString	m_uuid
	Unique ID.

QList< ccColorScaleElement >	m_steps
	Elements.

ccColor::Rgb	m_rgbaScale [MAX_STEPS]
	Internal representation (RGB)

bool	m_updated
	Internal representation validity.

bool	m_relative
	Whether scale is relative or not.

bool	m_locked
	Whether scale is locked or not.

double	m_absoluteMinValue
	'Absolute' minimum value More...

double	m_absoluteRange
	'Absolute' range More...

LabelSet	m_customLabels
	List of custom labels.

Detailed Description

Color scale.

A color scale is defined by several 'steps' corresponding to given colors. The color between each step is linearly interpolated. A valid color scale must have at least 2 steps, one at relative position 0.0 (scale start) and one at relative position 1.0 (scale end). Steps can't be defined outside this interval.

For faster access, an array of interpolated colors is maintained internally. Be sure that the 'refresh' method has been called after any modification of the scale steps (position or color).

Constructor & Destructor Documentation

◆ ccColorScale()

ccColorScale::ccColorScale	(	const QString &	name,
		const QString &	uuid = `QString()`
	)

Default constructor.

Parameters

name	scale name
uuid	UUID (automatically generated if none is provided) Scale are 'relative' by default (can be changed afterwards, see setAbsolute). On construction they already have the two extreme steps defined (at position 0.0 and 1.0).

Member Function Documentation

◆ clear()

void ccColorScale::clear ( )

Clears all steps.

There should be at least 2 steps for the scale to be valid! Scale must not be locked.

◆ Create()

ccColorScale::Shared ccColorScale::Create ( const QString & name )

static

Creates a new color scale (with auto-generated unique id)

Warning: color scale is relative by default.

◆ fromFile()

bool ccColorScale::fromFile	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns: success

Reimplemented from ccSerializableObject.

◆ getAbsoluteBoundaries()

void ccColorScale::getAbsoluteBoundaries	(	double &	minVal,
		double &	maxVal
	)		const

Get absolute scale boundaries.

Warning: only valid with absolute scales!

◆ getColorByIndex()

const ccColor::Rgb & ccColorScale::getColorByIndex ( unsigned index ) const

inline

Returns color by index.

Parameters

index color index in m_rgbaScale array (must be below MAX_STEPS)

Returns: corresponding color

◆ getColorByRelativePos() [1/2]

const ccColor::Rgb * ccColorScale::getColorByRelativePos	(	double	relativePos,
		const ccColor::Rgb *	outOfRangeColor = `nullptr`
	)		const

inline

Returns color by relative position in scale.

Parameters

relativePos	relative position (should be in [0;1])
outOfRangeColor	default color to return if relativePos if out of [0;1]

Returns: corresponding color

◆ getColorByRelativePos() [2/2]

const ccColor::Rgb * ccColorScale::getColorByRelativePos	(	double	relativePos,
		unsigned	steps,
		const ccColor::Rgb *	outOfRangeColor = `nullptr`
	)		const

inline

Returns color by relative position in scale with a given 'resolution'.

Parameters

relativePos	relative position (must be between 0 and 1!)
steps	desired resolution (must be greater than 1 and smaller than MAX_STEPS)
outOfRangeColor	default color to return if relativePos if out of [0;1]

Returns: corresponding color

◆ getColorByValue()

const ccColor::Rgb * ccColorScale::getColorByValue	(	double	value,
		const ccColor::Rgb *	outOfRangeColor = `nullptr`
	)		const

inline

Returns color by value.

Warning: only valid with absolute scales!

Parameters

value	value
outOfRangeColor	default color to return if relativePos if out of [0;1]

Returns: corresponding color

◆ getRelativePosition()

double ccColorScale::getRelativePosition ( double value ) const

inline

Returns relative position of a given value (wrt to scale absolute min and max)

Warning: only valid with absolute scales! Use 'getColorByRelativePos' otherwise.

◆ insert()

void ccColorScale::insert	(	const ccColorScaleElement &	step,
		bool	autoUpdate = `true`
	)

Adds a step.

Scale must not be locked.

◆ isRelative()

bool ccColorScale::isRelative ( ) const

inline

Returns whether scale is relative or absoute.

Relative means that internal 'values' are percentage.

◆ isSerializable()

bool ccColorScale::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

◆ remove()

void ccColorScale::remove	(	int	index,
		bool	autoUpdate = `true`
	)

Deletes a given step.

The first and last index shouldn't be deleted! Scale must not be locked.

◆ setCustomLabels()

void ccColorScale::setCustomLabels ( const LabelSet & labels )

inline

Sets the list of custom labels (only if the scale is absolute)

Warning: May throw std::bad_alloc exception)

◆ stepCount()

int ccColorScale::stepCount ( ) const

inline

Returns the current number of steps.

A valid scale should always have at least 2 steps!

◆ toFile()

bool ccColorScale::toFile ( QFile & out ) const

overridevirtual

Saves data to binary stream.

Parameters

out	output file (already opened)

Returns: success

Reimplemented from ccSerializableObject.

◆ update()

void ccColorScale::update ( )

Updates internal representation.

Must be called at least once after any modification (before using this scale).

Member Data Documentation

◆ m_absoluteMinValue

double ccColorScale::m_absoluteMinValue

protected

'Absolute' minimum value

Only used if scale is 'absolute' (i.e. not relative). 'Absolute' should not be taken in its mathematical meaning!

◆ m_absoluteRange

double ccColorScale::m_absoluteRange

protected

'Absolute' range

Only used if scale is 'absolute' (i.e. not relative). 'Absolute' should not be taken in its mathematical meaning!

The documentation for this class was generated from the following files:

ccColorScale.h
ccColorScale.cpp
