Generic file I/O filter. More...

#include <FileIOFilter.h>

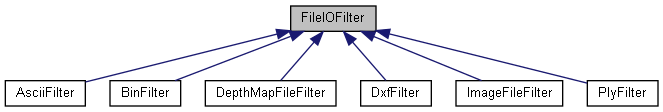

Inheritance diagram for FileIOFilter:

[legend]

Classes
struct	FilterInfo

struct	LoadParameters
	Generic loading parameters. More...

struct	SaveParameters
	Generic saving parameters. More...

Public Types
enum	FilterFeature { NoFeatures = 0x0000 , Import = 0x00001 , Export = 0x0002 , BuiltIn = 0x0004 , DynamicInfo = 0x0008 }

using	Shared = QSharedPointer< FileIOFilter >
	Shared type.

using	FilterContainer = std::vector< FileIOFilter::Shared >
	Type of a I/O filters container.

Public Member Functions
QCC_IO_LIB_API bool	importSupported () const
	Returns whether this I/O filter can import files.

QCC_IO_LIB_API bool	exportSupported () const
	Returns whether this I/O filter can export files.

QCC_IO_LIB_API const QStringList &	getFileFilters (bool onImport) const
	Returns the file filter(s) for this I/O filter. More...

QCC_IO_LIB_API QString	getDefaultExtension () const
	Returns the default file extension.

virtual CC_FILE_ERROR	loadFile (const QString &filename, ccHObject &container, LoadParameters &parameters)
	Loads one or more entities from a file. More...

virtual CC_FILE_ERROR	saveToFile (ccHObject *entity, const QString &filename, const SaveParameters &parameters)
	Saves an entity (or a group of) to a file. More...

virtual bool	canSave (CC_CLASS_ENUM type, bool &multiple, bool &exclusive) const
	Returns whether this I/O filter can save the specified type of entity. More...

virtual void	unregister ()
	Called when the filter is unregistered. More...

Static Public Member Functions
static QCC_IO_LIB_API QStringList	ImportFilterList ()

static QCC_IO_LIB_API ccHObject *	LoadFromFile (const QString &filename, LoadParameters &parameters, Shared filter, CC_FILE_ERROR &result)
	Loads one or more entities from a file with a known filter. More...

static QCC_IO_LIB_API ccHObject *	LoadFromFile (const QString &filename, LoadParameters &parameters, CC_FILE_ERROR &result, const QString &fileFilter=QString())
	Loads one or more entities from a file with known type. More...

static QCC_IO_LIB_API CC_FILE_ERROR	SaveToFile (ccHObject *entities, const QString &filename, const SaveParameters &parameters, Shared filter)
	Saves an entity (or a group of) to a specific file thanks to a given filter. More...

static QCC_IO_LIB_API CC_FILE_ERROR	SaveToFile (ccHObject *entities, const QString &filename, const SaveParameters &parameters, const QString &fileFilter)
	Saves an entity (or a group of) to a specific file thanks to a given filter. More...

static QCC_IO_LIB_API bool	HandleGlobalShift (const CCVector3d &P, CCVector3d &Pshift, bool &preserveCoordinateShift, LoadParameters &loadParameters, bool useInputCoordinatesShiftIfPossible=false)
	Shortcut to the ccGlobalShiftManager mechanism specific for files. More...

static QCC_IO_LIB_API void	DisplayErrorMessage (CC_FILE_ERROR err, const QString &action, const QString &filename)
	Displays (to console) the message corresponding to a given error code. More...

static QCC_IO_LIB_API bool	CheckForSpecialChars (const QString &filename)
	Returns whether special characters are present in the input string.

static QCC_IO_LIB_API void	ResetSesionCounter ()
	Indicates to the I/O filters that a new loading/saving session has started (for "Apply all" buttons for instance)

static QCC_IO_LIB_API unsigned	IncreaseSesionCounter ()
	Indicates to the I/O filters that a new loading/saving action has started. More...

static QCC_IO_LIB_API void	InitInternalFilters ()
	Init internal filters (should be called once)

static QCC_IO_LIB_API void	Register (Shared filter)
	Registers a new filter.

static QCC_IO_LIB_API Shared	GetFilter (const QString &fileFilter, bool onImport)
	Returns the filter corresponding to the given 'file filter'.

static QCC_IO_LIB_API Shared	FindBestFilterForExtension (const QString &ext)
	Returns the best filter (presumably) to open a given file extension.

static QCC_IO_LIB_API const FilterContainer &	GetFilters ()
	Returns the set of all registered filters.

static QCC_IO_LIB_API void	UnregisterAll ()
	Unregisters all filters. More...

Protected Member Functions
QCC_IO_LIB_API	FileIOFilter (const FilterInfo &info)

void	setImportExtensions (const QStringList &extensions)

void	setImportFileFilterStrings (const QStringList &filterStrings)

void	setExportFileFilterStrings (const QStringList &filterStrings)

Static Protected Attributes
static constexpr float	DEFAULT_PRIORITY = 25.0f

Detailed Description

Generic file I/O filter.

Gives static access to file loader. Must be implemented by any specific I/O filter.

Member Function Documentation

◆ canSave()

virtual bool FileIOFilter::canSave	(	CC_CLASS_ENUM	type,
		bool &	multiple,
		bool &	exclusive
	)		const

inlinevirtual

Returns whether this I/O filter can save the specified type of entity.

Parameters

type	entity type
multiple	whether the filter can save multiple instances of this entity at once
exclusive	whether the filter can only save this type of entity if selected or if it can be mixed with other types

Returns: whether the entity type can be saved

Reimplemented in AsciiFilter, BinFilter, DepthMapFileFilter, DxfFilter, ImageFileFilter, and PlyFilter.

◆ DisplayErrorMessage()

void FileIOFilter::DisplayErrorMessage	(	CC_FILE_ERROR	err,
		const QString &	action,
		const QString &	filename
	)

static

Displays (to console) the message corresponding to a given error code.

Parameters

err	error code
action	"saving", "reading", etc.
filename	corresponding file

◆ getFileFilters()

const QStringList & FileIOFilter::getFileFilters ( bool onImport ) const

Returns the file filter(s) for this I/O filter.

E.g. 'ASCII file (*.asc)'

Parameters

onImport whether the requested filters are for import or export

Returns: list of filters

◆ HandleGlobalShift()

bool FileIOFilter::HandleGlobalShift	(	const CCVector3d &	P,
		CCVector3d &	Pshift,
		bool &	preserveCoordinateShift,
		LoadParameters &	loadParameters,
		bool	useInputCoordinatesShiftIfPossible = `false`
	)

static

Shortcut to the ccGlobalShiftManager mechanism specific for files.

Parameters

[in]	P	sample point (typically the first loaded)
[out]	Pshift	global shift
[out]	preserveCoordinateShift	whether shift sould be preserved on save
[in]	loadParameters	loading parameters
[in]	useInputCoordinatesShiftIfPossible	whether to use the input 'PShift' vector if possible

Returns: whether global shift has been defined/enabled

◆ ImportFilterList()

QStringList FileIOFilter::ImportFilterList ( )

static

Get a list of all the available importer filter strings for use in a drop down menu. Includes "All (*.)" as the first item in the list.

◆ IncreaseSesionCounter()

unsigned FileIOFilter::IncreaseSesionCounter ( )

static

Indicates to the I/O filters that a new loading/saving action has started.

Returns: the updated session counter

◆ loadFile()

virtual CC_FILE_ERROR FileIOFilter::loadFile	(	const QString &	filename,
		ccHObject &	container,
		LoadParameters &	parameters
	)

inlinevirtual

Loads one or more entities from a file.

This method must be implemented by children classes.

Parameters

filename	file to load
container	container to store loaded entities
parameters	generic loading parameters

Returns: error

Reimplemented in AsciiFilter, BinFilter, DxfFilter, ImageFileFilter, and PlyFilter.

◆ LoadFromFile() [1/2]

ccHObject * FileIOFilter::LoadFromFile	(	const QString &	filename,
		LoadParameters &	parameters,
		CC_FILE_ERROR &	result,
		const QString &	fileFilter = `QString()`
	)

static

Loads one or more entities from a file with known type.

Shortcut to the other version of FileIOFilter::LoadFromFile

Parameters

	filename	filename
	parameters	generic loading parameters
[out]	result	file error code
	fileFilter	input filter 'file filter' (if empty, the best I/O filter will be guessed from the file extension)

Returns: loaded entities (or 0 if an error occurred)

◆ LoadFromFile() [2/2]

ccHObject * FileIOFilter::LoadFromFile	(	const QString &	filename,
		LoadParameters &	parameters,
		Shared	filter,
		CC_FILE_ERROR &	result
	)

static

Loads one or more entities from a file with a known filter.

Shortcut to FileIOFilter::loadFile

Parameters

	filename	filename
	parameters	generic loading parameters
	filter	input filter
[out]	result	file error code

Returns: loaded entities (or 0 if an error occurred)

◆ SaveToFile() [1/2]

CC_FILE_ERROR FileIOFilter::SaveToFile	(	ccHObject *	entities,
		const QString &	filename,
		const SaveParameters &	parameters,
		const QString &	fileFilter
	)

static

Saves an entity (or a group of) to a specific file thanks to a given filter.

Shortcut to the other version of FileIOFilter::SaveToFile

Parameters

entities	entity to save (can be a group of other entities)
filename	filename
parameters	saving parameters
fileFilter	output filter 'file filter'

Returns: error type (if any)

◆ SaveToFile() [2/2]

CC_FILE_ERROR FileIOFilter::SaveToFile	(	ccHObject *	entities,
		const QString &	filename,
		const SaveParameters &	parameters,
		Shared	filter
	)

static

Saves an entity (or a group of) to a specific file thanks to a given filter.

Shortcut to FileIOFilter::saveFile

Parameters

entities	entity to save (can be a group of other entities)
filename	filename
parameters	saving parameters
filter	output filter

Returns: error type (if any)

◆ saveToFile()

virtual CC_FILE_ERROR FileIOFilter::saveToFile	(	ccHObject *	entity,
		const QString &	filename,
		const SaveParameters &	parameters
	)

inlinevirtual

Saves an entity (or a group of) to a file.

This method must be implemented by children classes.

Parameters

entity	entity (or group of) to save
filename	filename
parameters	generic saving parameters

Returns: error

Reimplemented in AsciiFilter, BinFilter, DepthMapFileFilter, DxfFilter, ImageFileFilter, and PlyFilter.

◆ setExportFileFilterStrings()

void FileIOFilter::setExportFileFilterStrings ( const QStringList & filterStrings )

protected

Allow export filter strings to be set after construction (e.g. for ImageFileFilter & QImageReader::supportedImageFormats())

◆ setImportExtensions()

void FileIOFilter::setImportExtensions ( const QStringList & extensions )

protected

Allow import extensions to be set after construction (e.g. for ImageFileFilter & QImageReader::supportedImageFormats())

◆ setImportFileFilterStrings()

void FileIOFilter::setImportFileFilterStrings ( const QStringList & filterStrings )

protected

Allow import filter strings to be set after construction (e.g. for ImageFileFilter & QImageReader::supportedImageFormats())

◆ unregister()

virtual void FileIOFilter::unregister ( )

inlinevirtual

Called when the filter is unregistered.

Does nothing by default

◆ UnregisterAll()

void FileIOFilter::UnregisterAll ( )

static

Unregisters all filters.

Should be called at the end of the application

The documentation for this class was generated from the following files:

FileIOFilter.h
FileIOFilter.cpp
