ccHistogramWindow Class Reference

Histogram widget. More...

#include <ccHistogramWindow.h>

Inheritance diagram for ccHistogramWindow:

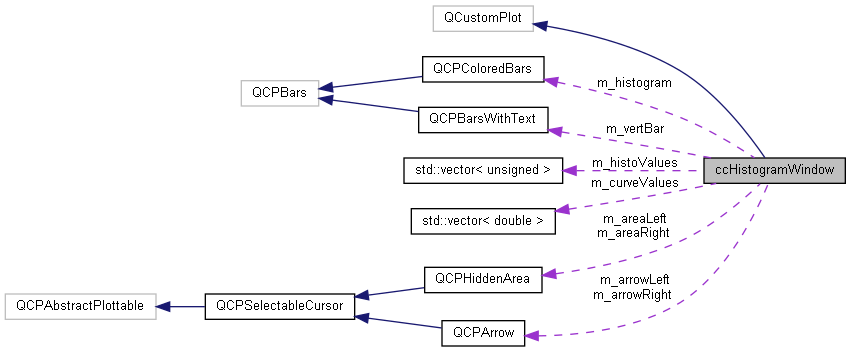

Collaboration diagram for ccHistogramWindow:

Public Types
enum	HISTOGRAM_COLOR_SCHEME { USE_SOLID_COLOR , USE_CUSTOM_COLOR_SCALE , USE_SF_SCALE }
enum class	AxisDisplayOption { None = 0x0 , XAxis = 0x01 , YAxis = 0x02 , All = XAxis | YAxis }
enum class	SFInteractionMode { None = 0x0 , DisplayRange = 0x01 , SaturationRange = 0x02 , All = DisplayRange | SaturationRange }

Signals
void	sfMinDispValChanged (double)
void	sfMaxDispValChanged (double)
void	sfMinSatValChanged (double)
void	sfMaxSatValChanged (double)

Public Member Functions
	ccHistogramWindow (QWidget *parent=0)
	Default constructor.
virtual	~ccHistogramWindow ()
	Destructor.
void	setTitle (const QString &str)
	Sets title.
void	setAxisLabels (const QString &xLabel, const QString &yLabel)
	Sets axis labels.
void	fromSF (ccScalarField *sf, unsigned initialNumberOfClasses=0, bool numberOfClassesCanBeChanged=true, bool showNaNValuesInGrey=true)
	Computes histogram from a scalar field. More...
void	fromBinArray (const std::vector< unsigned > &histoValues, double minVal, double maxVal)
	Creates histogram from a bin array (each bin = number of elements per class) More...
void	setCurveValues (const std::vector< double > &curveValues)
	Sets overlay curve values. More...
void	setColorScheme (HISTOGRAM_COLOR_SCHEME scheme)
	Sets how the gradient bars should be colored.
void	setSolidColor (QColor color)
	Sets solid color. More...
void	setColorScale (ccColorScale::Shared scale)
	Sets gradient color scale. More...
void	clear ()
	Clears the display.
void	refresh ()
	Updates the display.
void	refreshBars ()
	Updates the histogram bars only. More...
const std::vector< unsigned > &	histoValues () const
	Returns the current histogram bins.
double	minVal () const
	Returns the current histogram min value.
double	maxVal () const
	Returns the current histogram max value.
void	setSFInteractionMode (SFInteractionModes modes)
	Enables SF interaction mode.
void	setAxisDisplayOption (AxisDisplayOptions axisOptions)
void	setRefreshAfterResize (bool refreshAfterResize)
void	setMinDispValue (double)
void	setMaxDispValue (double)
void	setMinSatValue (double)
void	setMaxSatValue (double)

Protected Types
enum	SELECTABLE_ITEMS {   NONE , LEFT_AREA , RIGHT_AREA , BOTH_AREAS ,   LEFT_ARROW , RIGHT_ARROW , BOTH_ARROWS }
	Selectable items in "SF interaction" mode.

Protected Member Functions
void	setNumberOfClasses (size_t n)
	Changes the current number of classes. More...
void	mousePressEvent (QMouseEvent *event)
void	mouseMoveEvent (QMouseEvent *event)
void	wheelEvent (QWheelEvent *event)
void	resizeEvent (QResizeEvent *event)
unsigned	getMaxHistoVal ()
	Returns current maximum bin size.
void	clearInternal ()
	Clears internal structures.
bool	computeBinArrayFromSF (size_t binCount)
	Dynamically computes histogram bins from scalar field.
void	updateOverlayCurveWidth (int w, int h)
	Updates overlay curve width depending on the widget display size.

Protected Attributes
QString	m_titleStr
QCPTextElement *	m_titlePlot
HISTOGRAM_COLOR_SCHEME	m_colorScheme
	Color scheme.
QColor	m_solidColor
	Solid color.
ccColorScale::Shared	m_colorScale
	Gradient color scale.
ccScalarField *	m_associatedSF
	Associated scalar field.
bool	m_numberOfClassesCanBeChanged
bool	m_refreshAfterResize
QCPColoredBars *	m_histogram
std::vector< unsigned >	m_histoValues
double	m_minVal
double	m_maxVal
unsigned	m_maxHistoVal
QCPGraph *	m_overlayCurve
	Overlay curve.
std::vector< double >	m_curveValues
QCPBarsWithText *	m_vertBar
bool	m_drawVerticalIndicator
double	m_verticalIndicatorPositionPercent
QFont	m_renderingFont
	Rendering font.
AxisDisplayOptions	m_axisDisplayOptions
SFInteractionModes	m_sfInteractionModes
	Which SF interaction modes are enabled.
SELECTABLE_ITEMS	m_selectedItem
	Currently selected item.
QCPHiddenArea *	m_areaLeft
	Left greyed area.
double	m_areaLeftlastValue
QCPHiddenArea *	m_areaRight
	Right greyed area.
double	m_areaRightlastValue
QCPArrow *	m_arrowLeft
	Left arrow.
double	m_arrowLeftlastValue
QCPArrow *	m_arrowRight
	Right arrow.
double	m_arrowRightlastValue
QPoint	m_lastMouseClick
	Last mouse click.

Detailed Description

Histogram widget.

Member Function Documentation

fromBinArray()

void ccHistogramWindow::fromBinArray	(	const std::vector< unsigned > &	histoValues,
		double	minVal,
		double	maxVal
	)

Creates histogram from a bin array (each bin = number of elements per class)

Number of classes can't be modified.

Parameters

histoValues	array of bins
minVal	minimum value
maxVal	maximum value

fromSF()

void ccHistogramWindow::fromSF	(	ccScalarField *	sf,
		unsigned	initialNumberOfClasses = 0,
		bool	numberOfClassesCanBeChanged = true,
		bool	showNaNValuesInGrey = true
	)

Computes histogram from a scalar field.

Number of classes can be freely modified afterwards (if enabled).

Parameters

sf	associated scalar field
initialNumberOfClasses	initial number of classes
numberOfClassesCanBeChanged	whether to allow the user to modify the number of classes
showNaNValuesInGrey	show NaN values (in gray)

refreshBars()

void ccHistogramWindow::refreshBars

(

)

Updates the histogram bars only.

Only works if a SF is associated and color scheme is USE_SF_SCALE.

setColorScale()

void ccHistogramWindow::setColorScale ( ccColorScale::Shared  scale )

inline

Sets gradient color scale.

Only used if color scheme is set to USE_CUSTOM_COLOR_SCALE.

setCurveValues()

void ccHistogramWindow::setCurveValues

(

const std::vector< double > &

curveValues

)

Sets overlay curve values.

The curve will only appear over an histogram

Parameters

curveValues

curve points 'Y' coordinates only (regularly sampled between the min and max histogram values)

setNumberOfClasses()

void ccHistogramWindow::setNumberOfClasses ( size_t  n )

protected

Changes the current number of classes.

Warning: n should be a multiple of 4.

setSolidColor()

void ccHistogramWindow::setSolidColor ( QColor  color )

inline

Sets solid color.

Only used if color scheme is set to USE_SOLID_COLOR.

Member Data Documentation

m_numberOfClassesCanBeChanged

bool ccHistogramWindow::m_numberOfClassesCanBeChanged

protected

Only possible with an associated scalar field.

---

The documentation for this class was generated from the following files:

• ccHistogramWindow.h
• ccHistogramWindow.cpp
