ccPointPairRegistrationDlg Class Reference

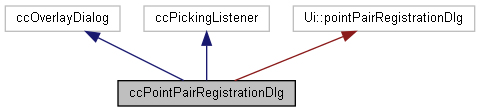

Inheritance diagram for ccPointPairRegistrationDlg:

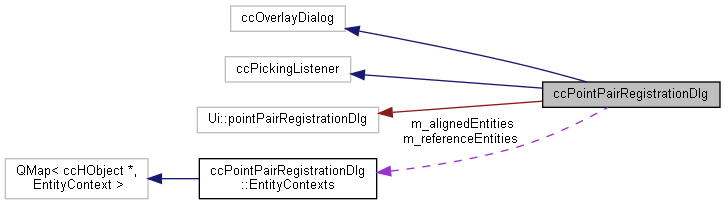

Collaboration diagram for ccPointPairRegistrationDlg:

Classes
struct	EntityContext
	Entity original context. More...
struct	EntityContexts
	Set of contexts. More...

Public Member Functions
	ccPointPairRegistrationDlg (ccPickingHub *pickingHub, ccMainAppInterface *app, QWidget *parent=nullptr)
	Default constructor.
bool	linkWith (ccGLWindow *win) override
bool	start () override
void	stop (bool state) override
bool	init (ccGLWindow *win, const ccHObject::Container &alignedEntities, const ccHObject::Container *referenceEntities=nullptr)
	Inits dialog.
void	clear ()
	Clears dialog.
void	pause (bool state)
	Pauses the dialog.
bool	addAlignedPoint (CCVector3d &P, ccHObject *entity=nullptr, bool shifted=true)
	Adds a point to the 'align' set.
bool	addReferencePoint (CCVector3d &P, ccHObject *entity=nullptr, bool shifted=true)
	Adds a point to the 'reference' set.
void	removeAlignedPoint (int index, bool autoRemoveDualPoint=true)
	Removes a point from the 'align' set.
void	removeRefPoint (int index, bool autoRemoveDualPoint=true)
	Removes a point from the 'reference' set.
void	onItemPicked (const PickedItem &pi) override
	Inherited from ccPickingListener.

Protected Member Functions
void	showAlignedEntities (bool)
	Slot called to change aligned entities visibility.
void	showReferenceEntities (bool)
	Slot called to change reference entities visibility.
void	addManualAlignedPoint ()
	Slot called to add a manual point to the 'align' set.
void	addManualRefPoint ()
	Slot called to add a manual point to the 'reference' set.
void	unstackAligned ()
	Slot called to remove the last point on the 'align' stack.
void	unstackRef ()
	Slot called to remove the last point on the 'reference' stack.
void	onDelButtonPushed ()
	Slot called when a "delete" button is pushed.
void	updateAlignInfo ()
	Updates the registration info and buttons states.
void	apply ()
void	align ()
void	reset ()
void	cancel ()
void	onPointCountChanged ()
	Enables (or not) buttons depending on the number of points in both lists.
bool	callHornRegistration (CCCoreLib::PointProjectionTools::Transformation &trans, double &rms, bool autoUpdateTab)
	Calls Horn registration (CCCoreLib::HornRegistrationTools)
void	clearRMSColumns ()
	Clears the RMS rows.
void	addPointToTable (QTableWidget *tableWidget, int rowIndex, const CCVector3d &P, QString pointLabel)
	Adds a point to one of the table (ref./aligned)
bool	convertToSphereCenter (CCVector3d &P, ccHObject *entity, PointCoordinateType &sphereRadius)
	Converts a picked point to a sphere center (if necessary) More...
void	resetTitle ()
	Resets the displayed title (3D view)
void	removeLabel (ccPointCloud &points, unsigned childIndex, const EntityContexts &entities)
	Removes a label (and restore its associated label if any)

Protected Attributes
EntityContexts	m_alignedEntities
	Aligned entity.
ccPointCloud	m_alignedPoints
	Aligned points set.
EntityContexts	m_referenceEntities
	Reference entity (if any)
ccPointCloud	m_refPoints
	Reference points set.
ccGLWindow *	m_win
	Dedicated window.
bool	m_paused
	Whether the dialog is paused or not.
ccPickingHub *	m_pickingHub
	Picking hub.
ccMainAppInterface *	m_app
	Main application interface.

Member Function Documentation

convertToSphereCenter()

bool ccPointPairRegistrationDlg::convertToSphereCenter ( CCVector3d &  P, ccHObject *  entity, PointCoordinateType &  sphereRadius  )

protected

Converts a picked point to a sphere center (if necessary)

Parameters

P	input point (may be converted to a sphere center)
entity	associated entity
sphereRadius	the detected spherer radius (or -1 if no sphere)

Returns

whether the point can be used or not

---

The documentation for this class was generated from the following files:

• ccPointPairRegistrationDlg.h
• ccPointPairRegistrationDlg.cpp
