Waveform widget. More...

#include <ccWaveformDialog.h>

Inheritance diagram for ccWaveWidget:

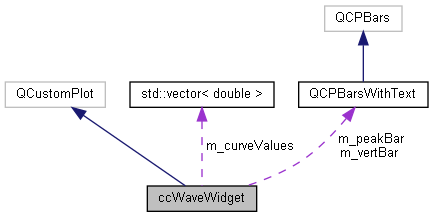

Collaboration diagram for ccWaveWidget:

[legend]

Public Member Functions
	ccWaveWidget (QWidget *parent=nullptr)
	Default constructor.

	~ccWaveWidget () override
	Destructor.

void	setTitle (const QString &str)
	Sets title.

void	setAxisLabels (const QString &xLabel, const QString &yLabel)
	Sets axis labels.

void	init (ccPointCloud *cloud, unsigned pointIndex, bool logScale, double maxValue=0.0)
	Computes the wave (curve) from a given point waveform.

void	clear ()
	Clears the display.

void	refresh ()
	Updates the display.

Protected Member Functions
void	mousePressEvent (QMouseEvent *event) override

void	mouseMoveEvent (QMouseEvent *event) override

void	resizeEvent (QResizeEvent *event) override

void	clearInternal ()
	Clears internal structures.

void	updateCurveWidth (int w, int h)
	Updates overlay curve width depending on the widget display size.

Protected Attributes
QString	m_titleStr

QCPTextElement *	m_titlePlot

QCPGraph *	m_curve
	Wave curve.

std::vector< double >	m_curveValues

double	m_dt

double	m_minA

double	m_maxA

double	m_echoPos

QCPBarsWithText *	m_vertBar

bool	m_drawVerticalIndicator

double	m_verticalIndicatorPositionPercent

QCPBarsWithText *	m_peakBar

QFont	m_renderingFont
	Rendering font.

QPoint	m_lastMouseClick
	Last mouse click.

Detailed Description

Waveform widget.

The documentation for this class was generated from the following files:
