ccRasterGrid Struct Reference

Raster grid type. More...

#include <ccRasterGrid.h>

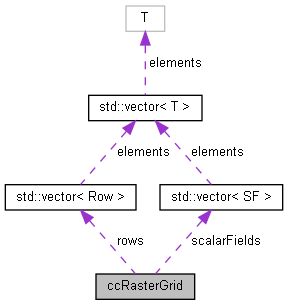

Collaboration diagram for ccRasterGrid:

Public Types
enum	ExportableFields {   PER_CELL_HEIGHT , PER_CELL_COUNT , PER_CELL_MIN_HEIGHT , PER_CELL_MAX_HEIGHT ,   PER_CELL_AVG_HEIGHT , PER_CELL_HEIGHT_STD_DEV , PER_CELL_HEIGHT_RANGE , PER_CELL_MEDIAN_HEIGHT ,   PER_CELL_INVALID }
	Exportable fields.
enum	ProjectionType {   PROJ_MINIMUM_VALUE = 0 , PROJ_AVERAGE_VALUE = 1 , PROJ_MAXIMUM_VALUE = 2 , PROJ_MEDIAN_VALUE = 3 ,   INVALID_PROJECTION_TYPE = 255 }
	Types of projection.
enum	EmptyCellFillOption {   LEAVE_EMPTY = 0 , FILL_MINIMUM_HEIGHT = 1 , FILL_MAXIMUM_HEIGHT = 2 , FILL_CUSTOM_HEIGHT = 3 ,   FILL_AVERAGE_HEIGHT = 4 , INTERPOLATE = 5 }
	Option for handling empty cells.
using	Row = std::vector< ccRasterCell >
	Row.
using	SF = std::vector< double >
	Scalar field.

Public Member Functions
	ccRasterGrid ()
	Default constructor.
virtual	~ccRasterGrid ()
	Destructor.
bool	init (unsigned w, unsigned h, double gridStep, const CCVector3d &minCorner)
	Initializes / resets the grid. More...
void	clear ()
	Clears the grid.
void	reset ()
	Resets the grid.
ccPointCloud *	convertToCloud (const std::vector< ExportableFields > &exportedFields, bool interpolateSF, bool interpolateColors, bool resampleInputCloudXY, bool resampleInputCloudZ, ccGenericPointCloud *inputCloud, unsigned char Z, const ccBBox &box, bool fillEmptyCells, double emptyCellsHeight, bool exportToOriginalCS) const
	Converts the grid to a cloud with scalar field(s)
bool	fillWith (ccGenericPointCloud *cloud, unsigned char projectionDimension, ProjectionType projectionType, bool doInterpolateEmptyCells, double maxEdgeLength, ProjectionType sfInterpolation=INVALID_PROJECTION_TYPE, ccProgressDialog *progressDialog=nullptr)
	Fills the grid with a point cloud. More...
void	fillEmptyCells (EmptyCellFillOption fillEmptyCellsStrategy, double customCellHeight=0)
	Fills the empty cell (for all strategies but 'INTERPOLATE')
unsigned	updateNonEmptyCellCount ()
	Updates the number of non-empty cells.
void	updateCellStats ()
	Updates the statistics about the cells.
bool	interpolateEmptyCells (double maxSquareEdgeLength)
	Interpolates the empty cells. More...
void	setValid (bool state)
	Sets valid.
bool	isValid () const
	Returns whether the grid is 'valid' or not.
CCVector2i	computeCellPos (const CCVector3 &P, unsigned char dimX, unsigned char dimY) const
	Computes the position of the cell that includes a given point.
CCVector2d	computeCellCenter (int i, int j, unsigned char dimX, unsigned char dimY) const
	Computes the position of the center of a given cell.

Static Public Member Functions
static bool	ComputeGridSize (unsigned char Z, const ccBBox &box, double gridStep, unsigned &width, unsigned &height)
	Computes the raster size for a given bounding-box.
static QString	GetDefaultFieldName (ExportableFields field)
	Returns the default name of a given field.

Public Attributes
std::vector< Row >	rows
	All cells.
std::vector< SF >	scalarFields
	Associated scalar fields.
unsigned	width
	Number of columns.
unsigned	height
	Number of rows.
double	gridStep
	Grid step ('pixel' size)
CCVector3d	minCorner
	Min corner (3D)
double	minHeight
	Min height (computed on the NON-EMPTY or INTERPOLATED cells)
double	maxHeight
	Max height (computed on the NON-EMPTY or INTERPOLATED cells)
double	meanHeight
	Average height (computed on the NON-EMPTY or INTERPOLATED cells)
unsigned	nonEmptyCellCount
	Number of NON-EMPTY cells.
unsigned	validCellCount
	Number of VALID cells.
bool	hasColors
	Whether the (average) colors are available or not.
bool	valid
	Whether the grid is valid/up-to-date.

Detailed Description

Raster grid type.

Member Function Documentation

fillWith()

bool ccRasterGrid::fillWith	(	ccGenericPointCloud *	cloud,
		unsigned char	projectionDimension,
		ProjectionType	projectionType,
		bool	doInterpolateEmptyCells,
		double	maxEdgeLength,
		ProjectionType	sfInterpolation = INVALID_PROJECTION_TYPE,
		ccProgressDialog *	progressDialog = nullptr
	)

Fills the grid with a point cloud.

Since version 2.8, we are using the "PixelIsPoint" convention (contrarily to what was written in the code comments so far!). This means that the height is computed at the center of the grid cell.

init()

bool ccRasterGrid::init	(	unsigned	w,
		unsigned	h,
		double	gridStep,
		const CCVector3d &	minCorner
	)

Initializes / resets the grid.

We use the "Pixel-is-area" convention but 'min corner'

corresponds to the lower left cell CENTER.

| | | | | U | V | W |

| | | |

| | | | | X | Y | Z |

| | | |

Here, w=3 and h=2, and minCorner=X

interpolateEmptyCells()

bool ccRasterGrid::interpolateEmptyCells

(

double

maxSquareEdgeLength

)

Interpolates the empty cells.

Warning

The number of non empty cells must be up-to-date (see updateNonEmptyCellCount)

Parameters

maxSquareEdgeLength

Max (square) edge length to filter large triangles during the interpolation process

---

The documentation for this struct was generated from the following files:

• ccRasterGrid.h
• ccRasterGrid.cpp
